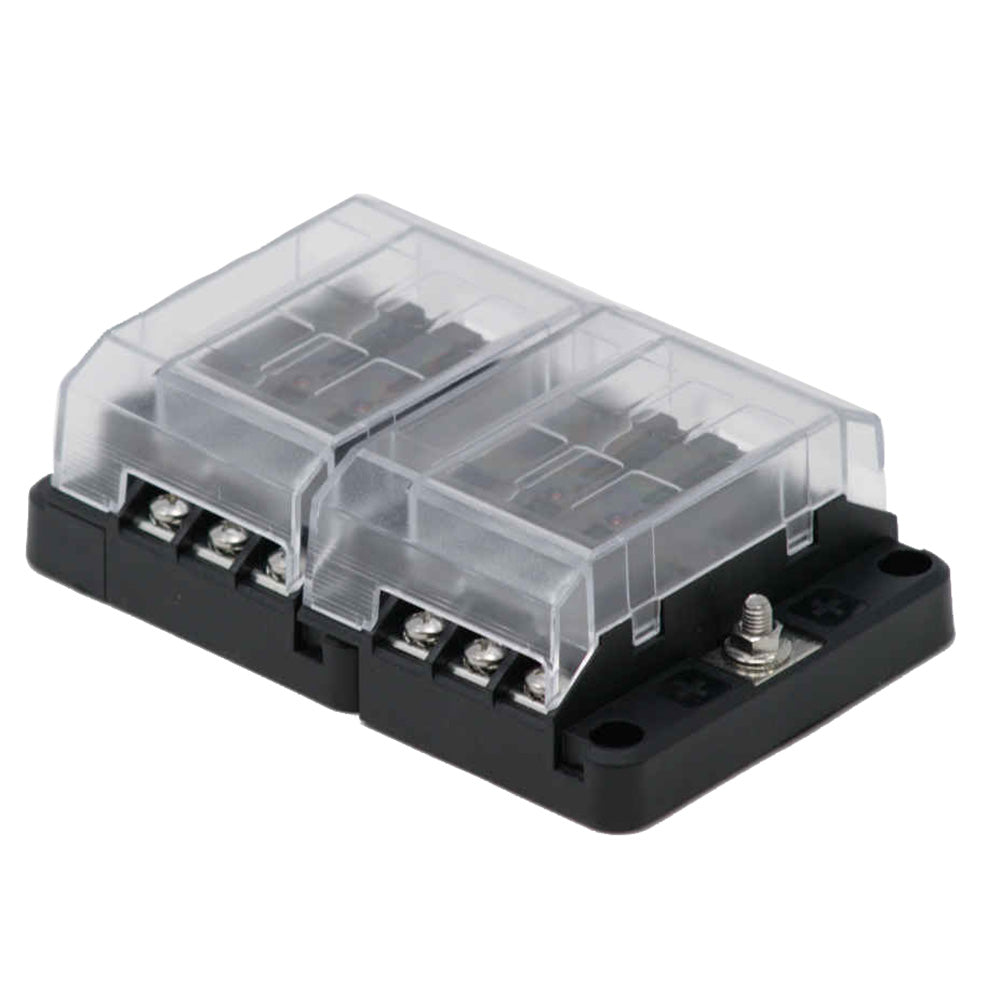

Egis RT Fuse Block 12 Position w/LED Indication [8029]
Egis RT Fuse Block 12 Position w/LED Indication [8029]
  • Load image into Gallery viewer, Egis RT Fuse Block 12 Position w/LED Indication [8029]
  • Load image into Gallery viewer, Egis RT Fuse Block 12 Position w/LED Indication [8029]

Egis RT Fuse Block 12 Position w/LED Indication [8029]

Regular price
$37.99
Sale price
$37.99
Regular price
$51.60
Sold out
Unit price
per
Shipping calculated at checkout.

RT Fuse Block 12 Position with LED Indication

This 12-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has an LED indication.

Applications:

  • Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
  • Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

  • Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware, allows mounting anywhere on the vehicle
  • Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
  • Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

  • Maximum Current (Entire Block) Amps: 100
  • Maximum Current (Per Circuit) Amps: 30
  • Max Output Wire Size: #10 AWG
  • Voltage Range VDC: 12-24
  • Number of Fuse Positions: 12
  • Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

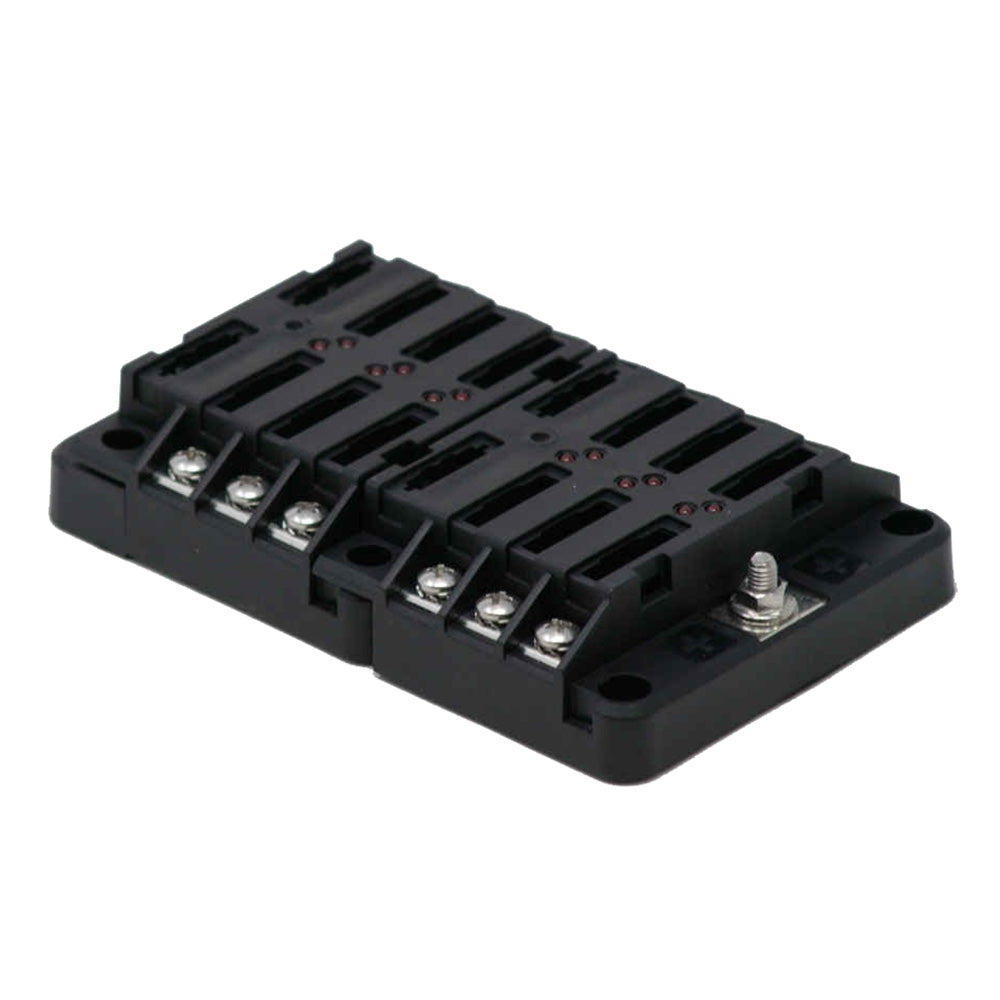

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Type: Fuse Blocks
  • Box Dimensions: 3"H x 4"W x 8"L WT: 0.9 lbs
  • UPC: 850035199749

Quick Guide (pdf)
