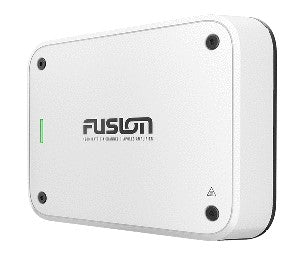

Apollo™ Marine 4 Channel Amplifier - 1200W
Amplify the moment with an Apollo™ marine amplifier – designed specifically for use with your FUSION DSP-enabled marine stereo and Fusion speakers.
This powerful and efficient 4 channel amplifier is the difference between hearing the music and feeling it. With an impressive 150-watt RMS per channel (at 4 ohms), this amplifier can power up to four pairs of speakers or two pairs of speakers and one subwoofer. The Easy Tune feature automatically regulates audio settings for the best sound quality without manual adjustments (Requires setup using the Fusion-Link™ app on a compatible smartphone).
FUSION Apollo MS-AP41200
- Impressive Power - 150-watt RMS per channel (at 4 ohms), capable of powering up to four pairs of speakers or two pairs of speakers and one subwoofer.
- Efficient Class-D Design - Uses less power, so you can listen to music for longer at higher volumes, with less drain on the battery.
- Easy Tune Feature - Automatically adjusts audio settings for the best possible sound quality with no manual adjustments required (Requires setup using the Fusion-Link app on a compatible smartphone).
- LED Indicator - Show issues with electrical currents and shorts as well as temperature.
- Less Total Harmonic Distortion - The amplifier is designed with minimal distortion and noise, allowing for better quality audio.
- Ignition Protected - Intelligent electronic fuse prevents damage from over/under current, temperature, output short, and other faults.
- Conformal Coated PCBs - The amplifier circuit board has been specially coated to provide enhanced protection from the marine elements.
- Powder Coated Aluminum Finish - Salt fog, temperature, vibration, and UV tested with a modern aesthetic design to add style to your boat.
- Easy Installation - Proprietary cable connectors and a mounting bracket are included in the box. The cable connectors allow you to pre-wire your speakers/subwoofers, while the mounting bracket allow you to simply clip the amplifier in place for a clean finish.
- High Power Mode - High-power mode adapters are included in the box, designed to simplify the way you bridge two channels in high power mode, increasing the output power.
- True-Marine™ Design - Designed to withstand the harshest marine environments season after season and comes with a 3-year warranty.
- Channels - Four (4)
- Peak Power - 1200 Watts
- Power at 4 ohms - 150 Watt RMS
- Power at 2 ohms - 290 Watt RMS
- Power at 4 ohms Bridged - 580 Watt RMS
- Operating Voltage - 10.8 to 16 VDC
- Class D Amplifier
- Water Rating - IPX2
- Dimensions with bracket (W x H x D) - 9.25" x 7.06" x 2.13"
- Dimensions without bracket (W x H x D) - 9.25" x 7.06" x 1.75"
- Weight - 4.85 pounds
In the Box:
- One Apollo 4 channel amplifier
- One mounting bracket
- One power connector
- Two speaker connectors with high power mode adapters
- Four 8-gauge, flat head self-tapping screws
- Four 8-gauge, pan head self-tapping screws (for mounting bracket)
- Four screw covers
- Mounting template
- Installation instructions
- Important safety and product information (ISPI)
