|Card Type||Garmin BlueChart|
|Connection Interface||SD Card
Garmin Marine Network
|Diagonal Screen Size||16"|
|Dimensions||15.1" x 10.3" x 3|
|Display Type||Color FHD|
|Resolution||1920 x 1080|
|Voltage||9 to 32V DC|
|Warranty Details||Two Years|
This Item Comes with FAST FREE 1-3 Day Tracked Shipping!!!

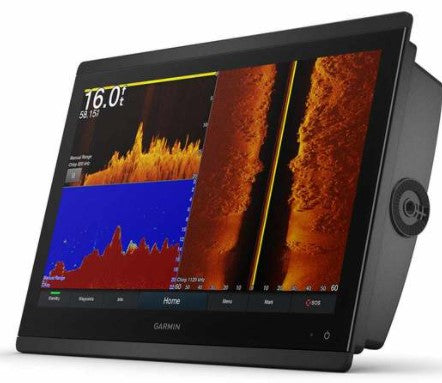

16" Touchscreen Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Display
- Features a 16" full HD IPS touchscreen display preloaded with both BlueChart® g3 U.S. coastal and LakeVü HD maps featuring Navionics® data and Auto Guidance¹ technology
- Fully network capable with NMEA 2000® connectivity and the Garmin Marine Network
- Built-in support for the full suite of Garmin sonar capabilities
- Includes ANT® technology and Wi-Fi® networking
- SmartMode™ station controls for quick, one-touch access to the information you need
Serious sport fishermen, cruisers, sailors and sail racers demand serious equipment. The easy-to-use, easy-to-install GPSMAP 8616xsv chartplotter/sonar combo delivers MFD performance in a combo-size package. It features a 16" full HD IPS touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or can be mounted flush.
Complete Sonar Support
The GPSMAP 8616xsv chartplotter/sonar combo offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). It also supports the entire Panoptix™ all-seeing sonar line (transducers sold separately).
The Best of Garmin with the Best of Navionics
For the most detailed, clear and concise charts and maps, this chartplotter is preloaded with BlueChart® g3 coastal cartography and LakeVü g3 inland mapping featuring Navionics data. They also include our Auto Guidance technology, which shows a suggested route to a destination¹, based on your boat's specifications. The expandable memory allows you to upgrade your maps with accessory map purchases, such as BlueChart® g3 Vision and LakeVü g3 Ultra. View Chart Detail, Garmin New Chart Guarantee
Build Your Marine System
NMEA 2000 networking and the Garmin Marine Network allow you to easily build your full marine electronics suite — from radar and autopilots to cameras, instruments and forward-looking sonar — controlled from your chartplotter and shared across multiple screens. In addition, our exclusive OneHelm™ system coordinates many third-party manufactured onboard marine products to bring full control of systems — such as digital switching, lighting, stabilization and more — conveniently to your chartplotter screen.
The GPSMAP 8616xsv chartplotter has a premium-performance processor that enables fast map drawing, superior networking, video distribution and more. Built-in Wi-Fi technology lets you pair with the free ActiveCaptain® app for access to OneChart™, smart notifications¹, Garmin Quickdraw™ community data and more. You can also control video streaming from our GC™ 100 wireless camera and VIRB® action cameras. In addition, built-in ANT wireless technology connects you directly to our quatix® marine watch, gWind™ Wireless 2 transducer and wireless remote controls.
SmartMode Station Controls
Networked sonar, radar, cameras, media and digital switching can be independent or incorporated into SmartMode station controls. With SmartMode, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking.
Special Sailing Features
The Garmin SailAssist™ feature provides data, displays and prerace guidance to help you gain a competitive edge. Other sailing features include laylines, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider. Gauge displays provide need-to-know information at a glance, including true and apparent wind angle, set and drift, true or apparent wind speed, horizontal or vertical graphs and a data bar with customizable fields.
The Ultimate Connected Boating App
Download the ActiveCaptain app to your smartphone or tablet to manage your marine experience from anywhere — from trip planning and prefishing to updating software and purchasing maps.Mfg. # 010-02093-03
