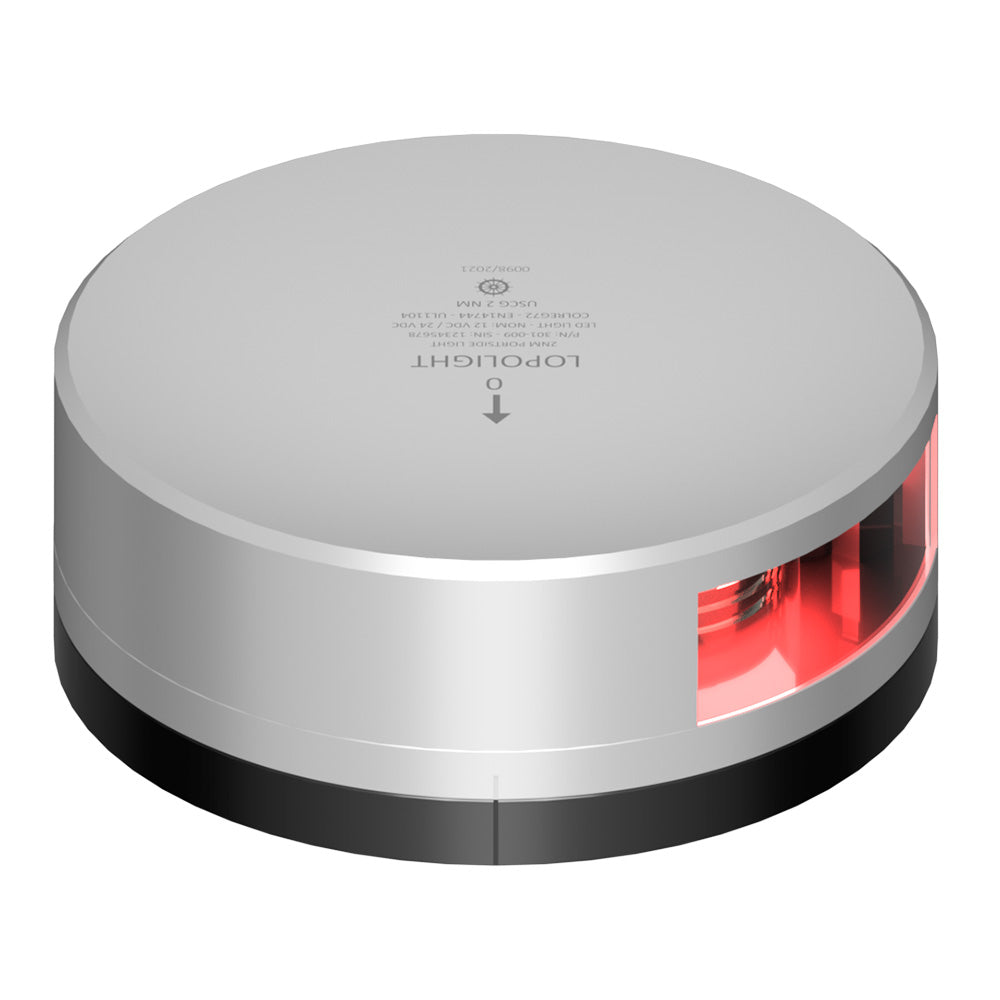

Red Port Light - 2NM - Silver Housing with FB Base

This red port light has a silver housing, is horizontally mounted, and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

  • Silver anodized aluminum housing
  • 2.5m cable is included

Specifications:

  • Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR
  • Mounting: Horizontal
  • EAN: 5704438043725
  • Min. Feed Wire Gauge: 0.5mm2 AWG22
  • Light Color: Red
  • Visibility: 2NM
  • Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide
  • Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
  • IP rating: IP68
  • Connection: 2.5m cable
  • Current Consumption (mA @ 24VDC): 50
  • Current Consumption (mA @ 12VDC): 90
  • Dimensions Metric: Ø92.5mm x 36mm
  • Dimensions Imperial: Ø3.6" x 1.4"
  • Operating Temperature: -25 degrees C to 55 degrees C
  • Operating Voltage: 10-32VDC
  • Power Draw (W): 1.2
  • Vessel Size: Under 12 meters, 12-20 meters, and 20-50 meters

Specifications:

  • Housing: Silver
  • Visible Range (Miles): 2NM
  • Voltage - Input Range (Volts): 10 - 32
  • Box Dimensions: 3"H x 3"W x 3"L WT: 1.4 lbs
  • UPC: 879343043858

Quick Guide (pdf)
