Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna [5239]

Shakespeare Cellular/Wi-Fi World Band Galaxy Antenna [5239]

Regular price
$77.99
Sale price
$77.99
Regular price
$219.99
Sold out
Unit price
per
Shipping calculated at checkout.

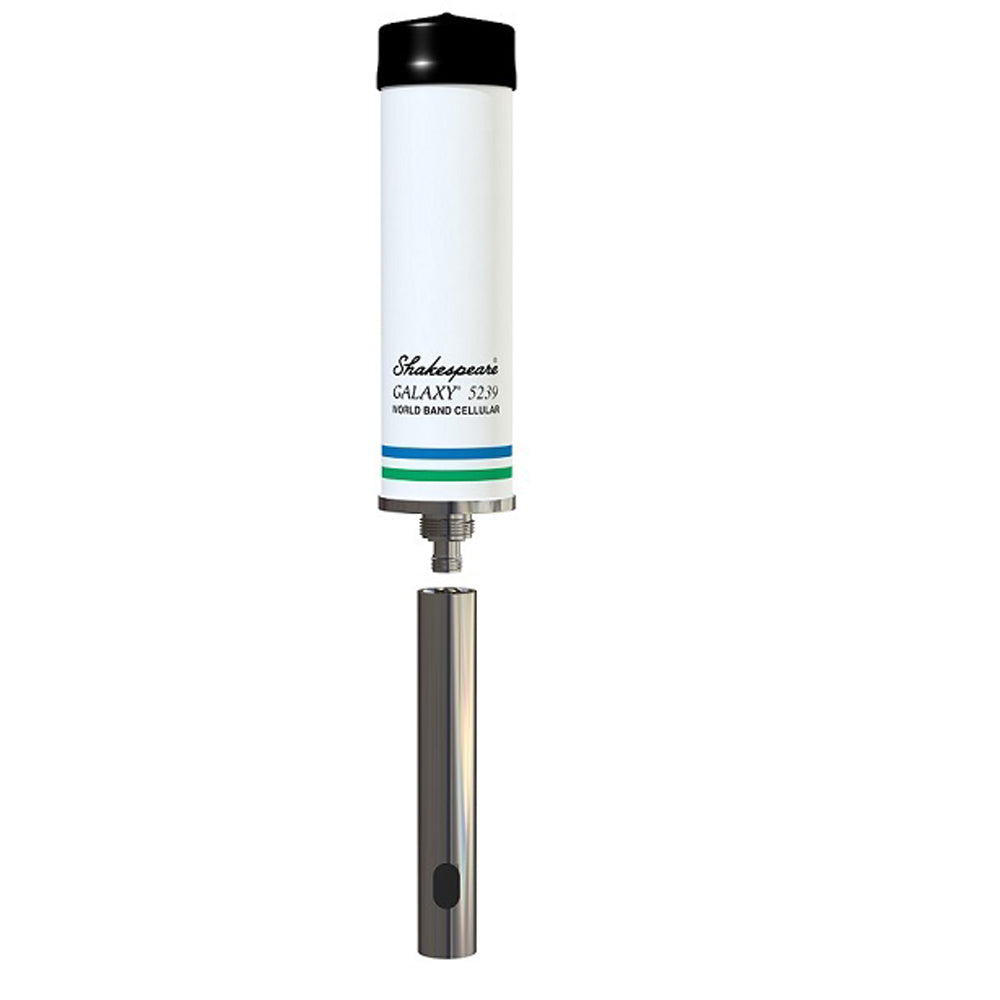

Cellular/Wi-Fi World Band Galaxy Antenna

The Galaxy 5239 antenna is Shakespeare's smallest Galaxy antenna, but don't let the size fool you. This World-band antenna provides coverage for 2G/3G/4G and WLAN systems for Cellular, PCS, AWS and LTE frequencies, as well as 802.11n Wi-Fi. This compact, feature rich antenna is at home on virtually any watercraft, and is fitted with a stainless steel ferrule and N-connector that are compatible with nearly all Shakespeare 1in -14 threaded mounts.

Features:

  • Full Band (698 - 2700 MHz) Broadband
  • 2G/3G/4G and WLAN systems
  • Wi-Fi 802.11n compatible
  • Designed for marine use
  • Omni-directional antenna 3-4 dB Gain.
  • Easy to install
  • Includes FME Cables

Specifications:

  • Frequency: 698-960/1700-2700 MHz
  • Input Impedence: 50 ohm
  • Antenna Gain: 2-3dB @ 698-960/3-4dB @ 1700-2700 MHz
  • VSWR: ≤ 1.8
  • Power Rating (W): 10
  • Polarization Type: Vertical
  • Radiation: Omni-Directional
  • Maximum Power (W): 100
  • Connector Type: N-female
  • Dimension: 9.25" H x 2.625" D
  • Color: White
  • Operating Temperature (F): -22 to +176
  • Mounting: 1" x 14 Thread Mount
  • Ground Plane: Internal
  • Material: Fiberglass

Specifications:

  • Length (Inches): 9.25"
  • Construction: Fiberglass
  • Color: White
  • Box Dimensions: 5"H x 5"W x 11"L WT: 1.8 lbs
  • UPC: 719441900960
